PSI-Polymer Systems

Extrudpak-250 PLC Control

Operates one (1) Gear Pump and up to Six (6) Heat Control Zones

Product Description

PLC: Allen Bradley

HMI: 10” color touch screen

Monitors / controls inlet pressure to one (1) gear pump.  Interfaces with extruder drive as applicable.


  • Pump speed, Pump current
  • Suction and discharge pressure

System alarms and shut down for:

  • Pressure
  • Low / High Suction
  • High Discharge & Delta Pressure
  • High current
  • Cold start protection – interconnecting wiring by customer


  • Auto start (auto ramp to full production)
  • Recipe storage automated product selection / start-up
  • Trending
  • Dala Logging (option)
  • Expandable I/O (option)
  • Transducer calibration
  • Removable flash memory data tracking and collection
  • Ethernet communication / EWON Capable
  • VNC viewer for displaying and using the control screen on a remote/larger monitor
  • External communication options available upon request

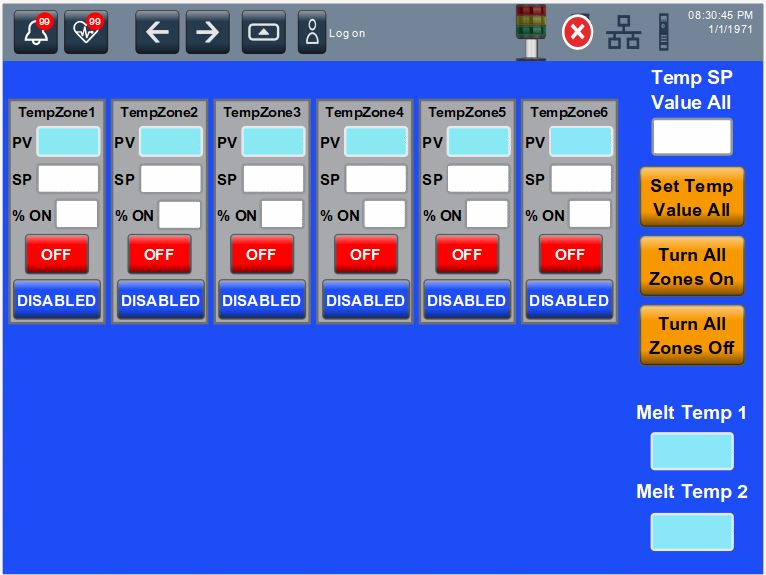

  • Up to six (6) heat control zones
ExtrudePak-250 Control Panel
Extrudepak 250 Control Panel
