Hydraulic Power Unit (HPU)

Hydraulic Power Unit for Polymer Extrusion Screen Changer Melt Filter

Get More from Your Process

PSI Hydraulic Power Units (HPU) provide the power to actuate hydraulically operated screen changers and divert valves.  Depending on the functional demand, HPUs are provided with pressure accumulators for a rapid change, or without an accumulator when a steady flow of pressure suffices to operate the system.  A single HPU can be arranged to operate multiple devices, either hard plumbed or with quick-disconnects.  HPUs are designed to operate with petroleum-based fluids and can optionally run water glycol.

HPU-15.0A Hydraulic Power Unit

Specifications

Hydraulic fluidAW-32 or equivalent
Viscosity index90+
Relief pressure3,000 PSI
Operating temp. (max.)120°F [49°C]
Pump typeGear
Accumulator style HPU:
Pressure switch2,700 PSI
Accumulator pre-charge1,400 PSI*
* HPUs with accumulators shipped by air freight have zero pre-charge. In these cases, the customer is responsible for charging the accumulator to the required pre-charge pressure before starting the system.
HPU ModelScreen Changer TypePump GPMMotor HpReservoir (Gal)Accumulator Vol. (Gal)Accumulator Type
HPU-0.4SCSC/DSC0.40.7510NANA
HPU-0.9SCSC/DSC0.9210NANA
HPU-1.2SCSC/DSC1.2310NANA
HPU-1.8SCSC/DSC1.8510NANA
HPU-2.7SCSC/DSC2.77.520NANA
HPU-4.2SCSC/DSC4.21020NANA

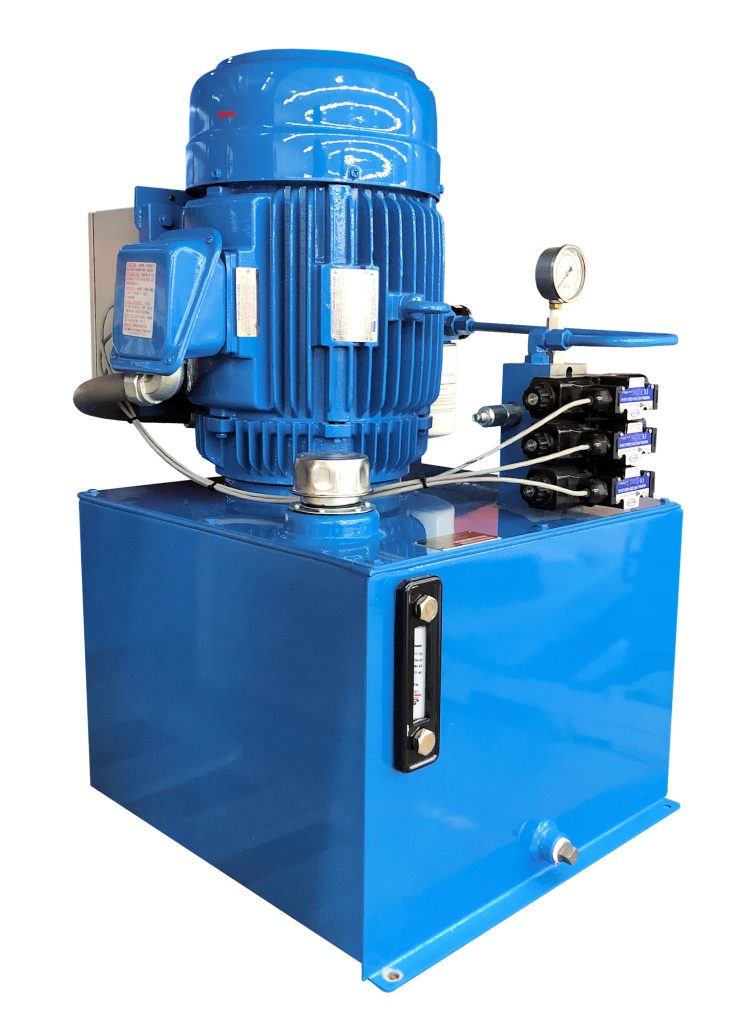

HPU-6.5SCSC/DSC6.51520NANA
HPU-8.5SCSC/DSC8.52030NANA

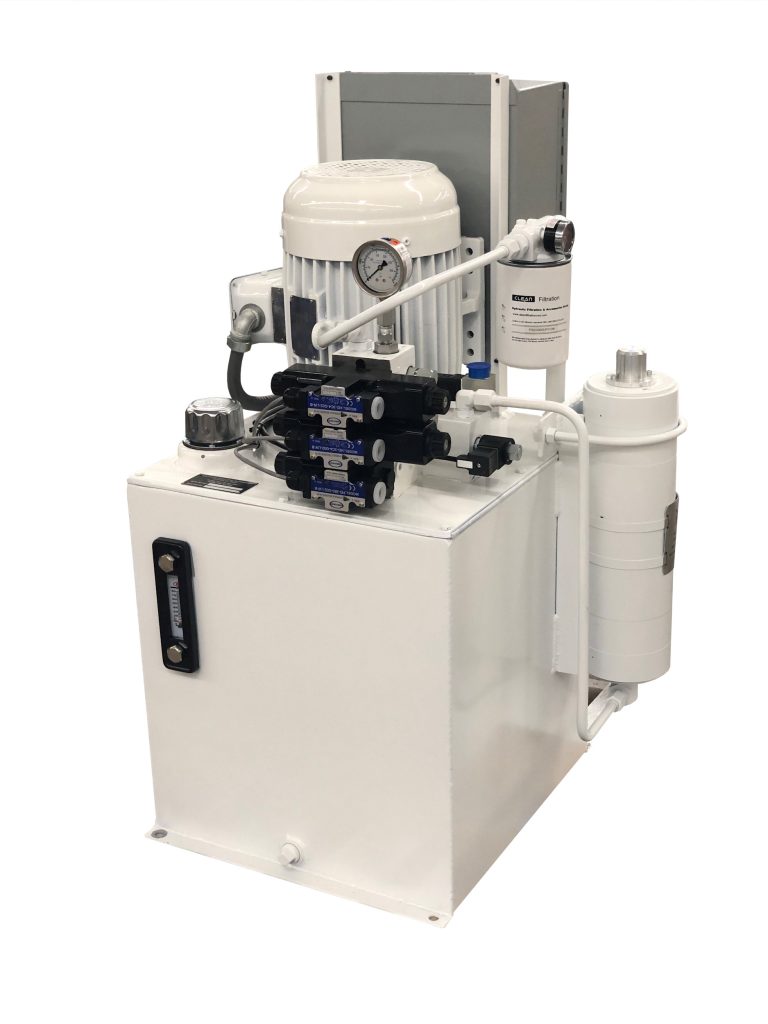

HPU-1.8S/0.5ACSC-BF1.85200.5Piston
HPU-2.7S/0.5ACSC-BF2.75200.5Piston
HPU-4.0S/1.0ACSC-BF47.5201Piston
HPU-1.5AHSC1.82101.5Piston
HPU-2.5AHSC1.83102.5Piston
HPU-5.0AHSC2.75205Piston
HPU-10.0AHSC3.17.53010Bladder

Features

  • Simple start-stop switch
  • Interlock prevents operation if device guards are open
  • System pressure relief valve prevents over-pressurization
  • Easy-to-read system pressure gauge

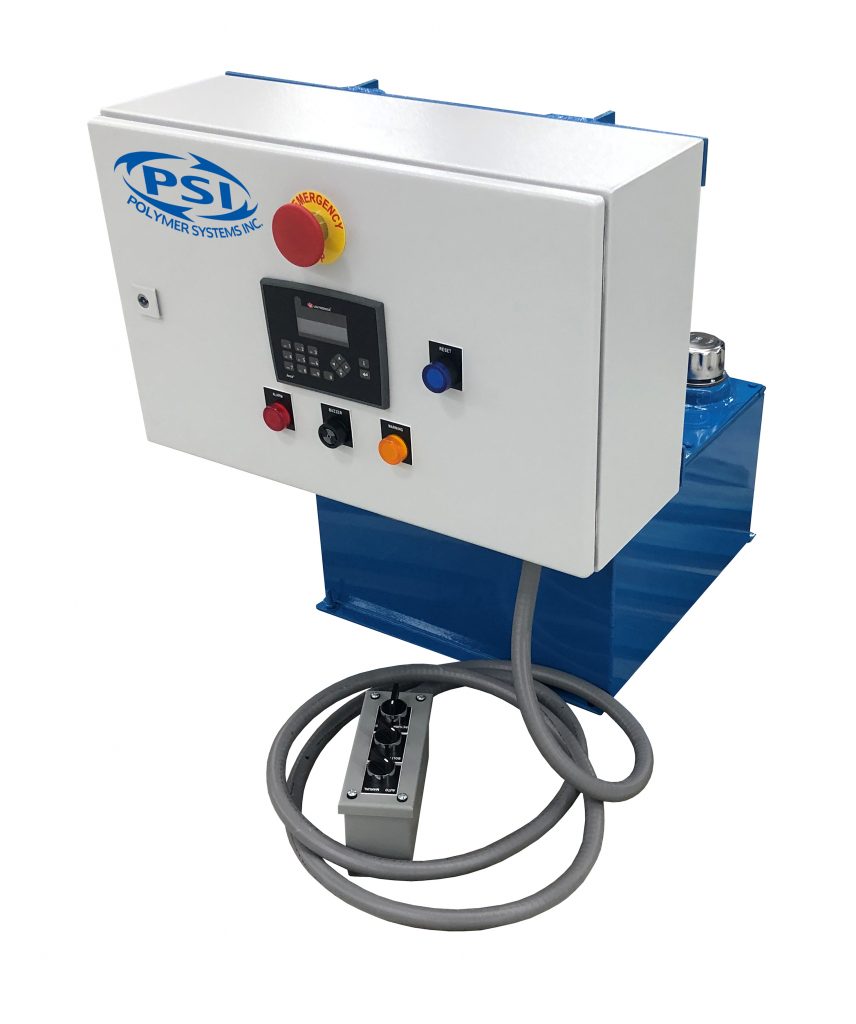

  • Control panel mounted to HPU
  • Reservoir includes oil level and temp gauges, breather cap filter and sump strainer

Accumulator Models

  • Piston accumulator through HPU-5.0A

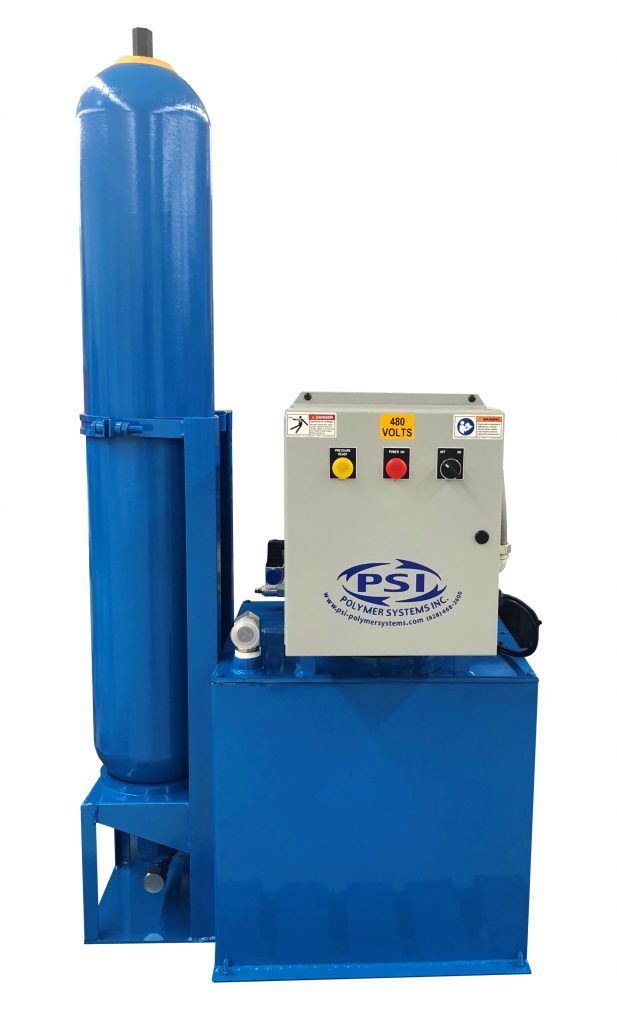

  • Bladder accumulator for large HPUs
  • Auto-dump solenoid valve relieves system pressure when power is off or disrupted
  • Anti-restart relay prevents automatic restart after power loss
  • Controls wired for 115V with control transformer included
  • Interlock prevents operation unit if pressure ready is not met
  • Accumulators rated for 3000 psi
  • Check valve – holds pressure after pump shuts off

Non-Accumulator Models

  • Controls wired for 24VDC with power supply
  • Return filter

Options

  • Special power-frequency for motor and controls
  • Manifolds for multi-screen changer operation
  • High-pressure hydraulic hoses
  • Water Glycol in lieu of petroleum-based fluid
  • Accumulator models:
    • Bladder accumulators
    • Nitrogen gas recharge kits
