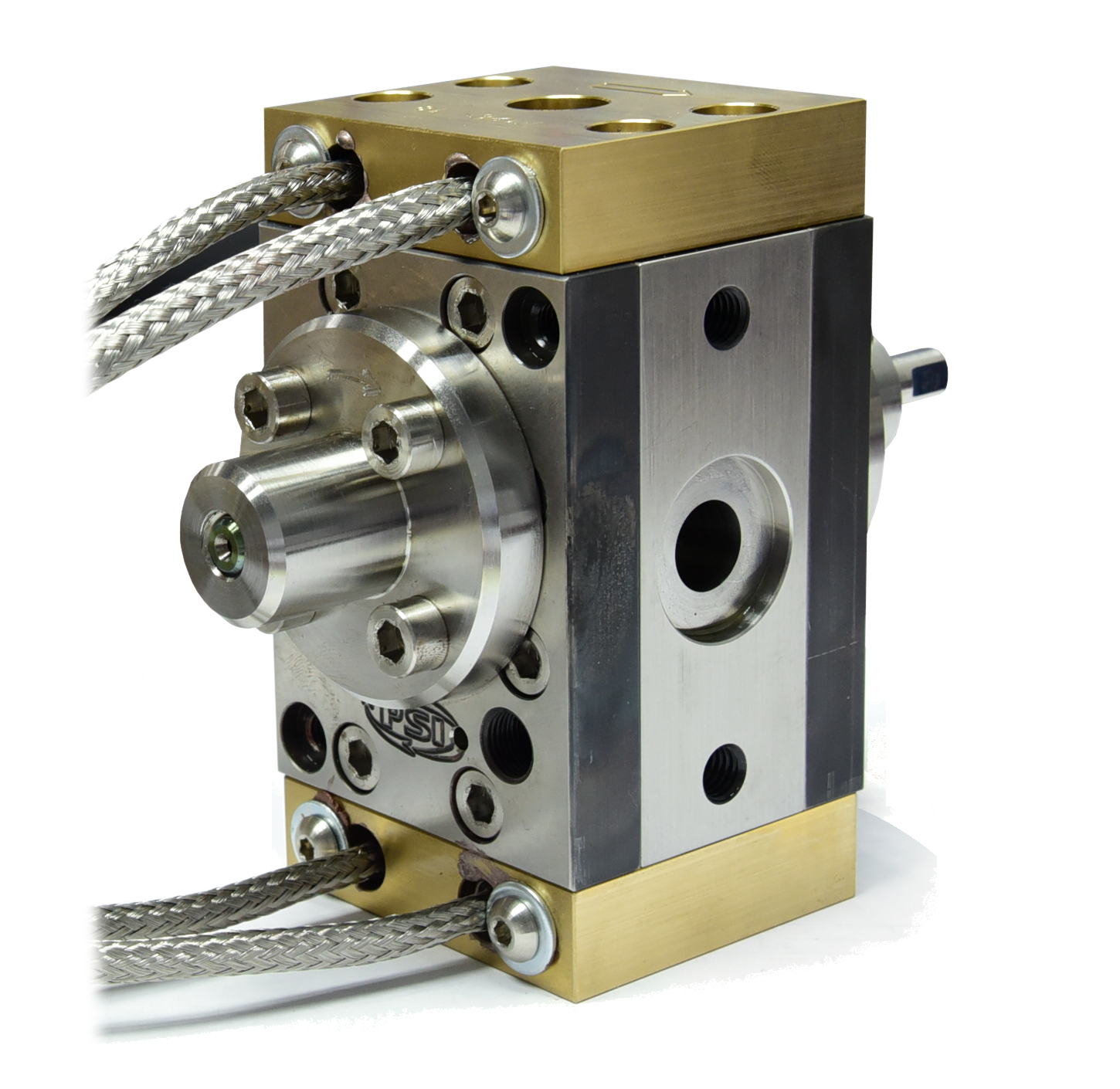

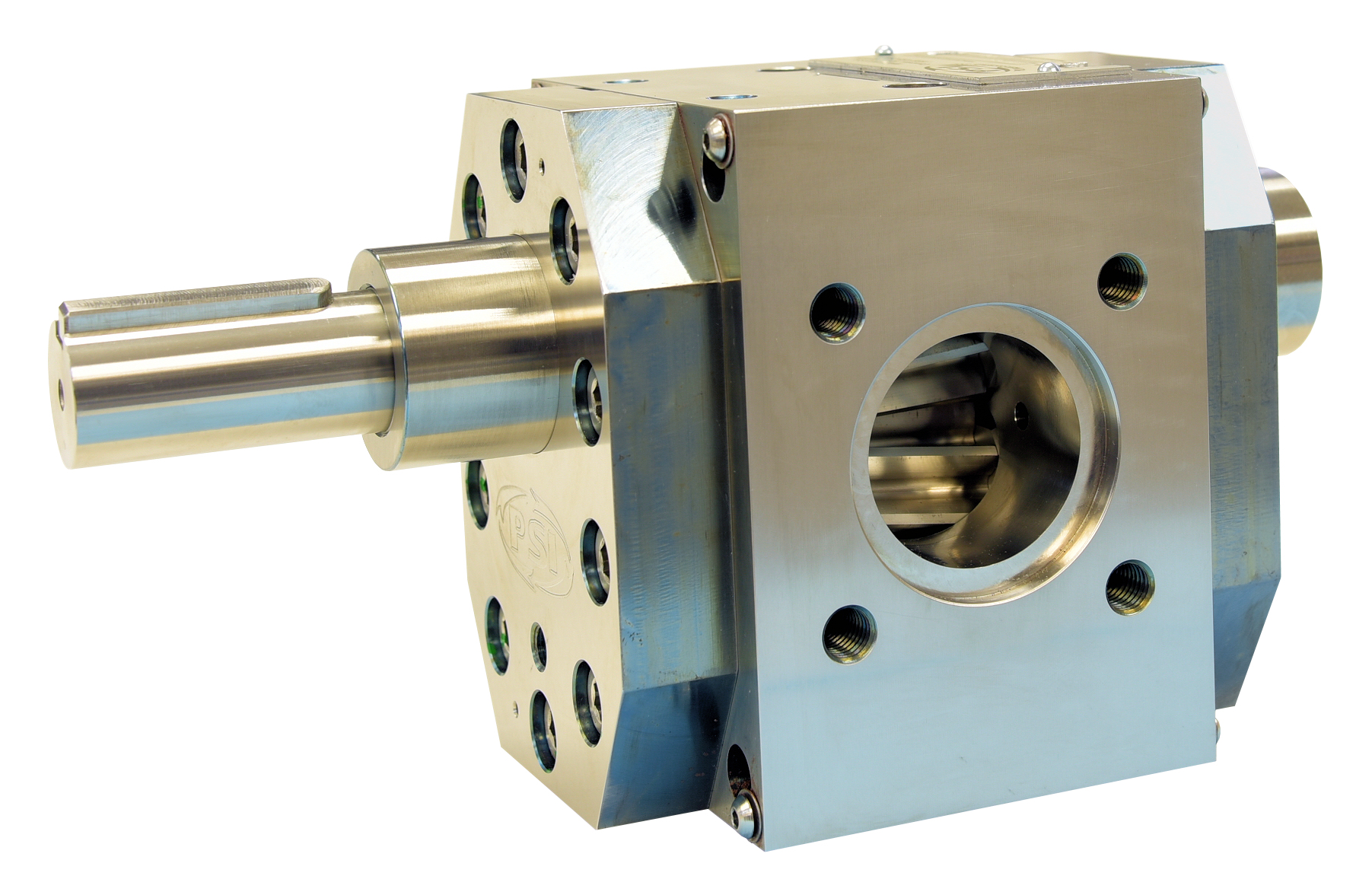

Fluoropolymer Gear Pump (FGP)

Get More from Your Process

PSI Fluoropolymer Gear Pumps (FGP) are engineered to meet the unique processing demands of fluorinated polymers, such as FEP, ETFE, PTFE, PFA, PVDF. Manufactured from a nickel-chromium superalloy, FGP gear pumps possess excellent mechanical strength at high temperatures and are highly resistant to corrosion. Applied primarily for tube, profile and sheet, these gear pumps offer exceptional metering control, steady die pressure and uniform gauge. Each full revolution of the tight-tolerance, counter-rotating gears delivers a precise linear volume of output, assuring optimal efficiency across the speed range.

Applications

Medical
Aerospace
Climate Control
Electromechanical
Flied & gas handling hydraulics, pneumatics, process control sealing & shielding

Specifications

Throughput rate (pph) [kg/h]*	.2 - 500 [.09 - 227]
Displacement (cc/rev)	.11 - 34
Temperature (°F) [°C]	Up to 850 [455]
Max oper. pressure (PSI) [bar]	max. 2,000 [138]
Differential pressure (PSI) [bar]	max. 5,000 [345]
Heating	Electric/Fluid
* Higher throughputs available. Consult factory

Link: Gear Pump volumetric output chart

Features

Inconel components throughout*
Visco seals – 30%-50% more seal area than any other competitor
Up to 99+% efficient
Pressure and temperature instrument ports**
Electric heat
Compact, low-profile design

*FGP gear pumps are designed for use with fluorinated polymers only. Use with other polymers will damage the pump.

**FGP-12 & 28 Series do not include integral pressure instrument ports.

Options

Seal cooling
High pressure
Internal fluid heat/cool
Cart mounted J-box
Hazardous location classification
Synchronized haul-off control (integrated in PSI supplied PLC gear pump controller)

Accessories

Support cart
Variable Frequency Drives
Pressure Instruments
Adaptors
Motor encoders

Controls

More details

ExtrudePak PLC: Control for one gear pump (optional downstream haul-off control available with full PLC)
Stand-alone Heat Control Panel
