Uniflo Static Mixer (USM)

Get More from Your Process

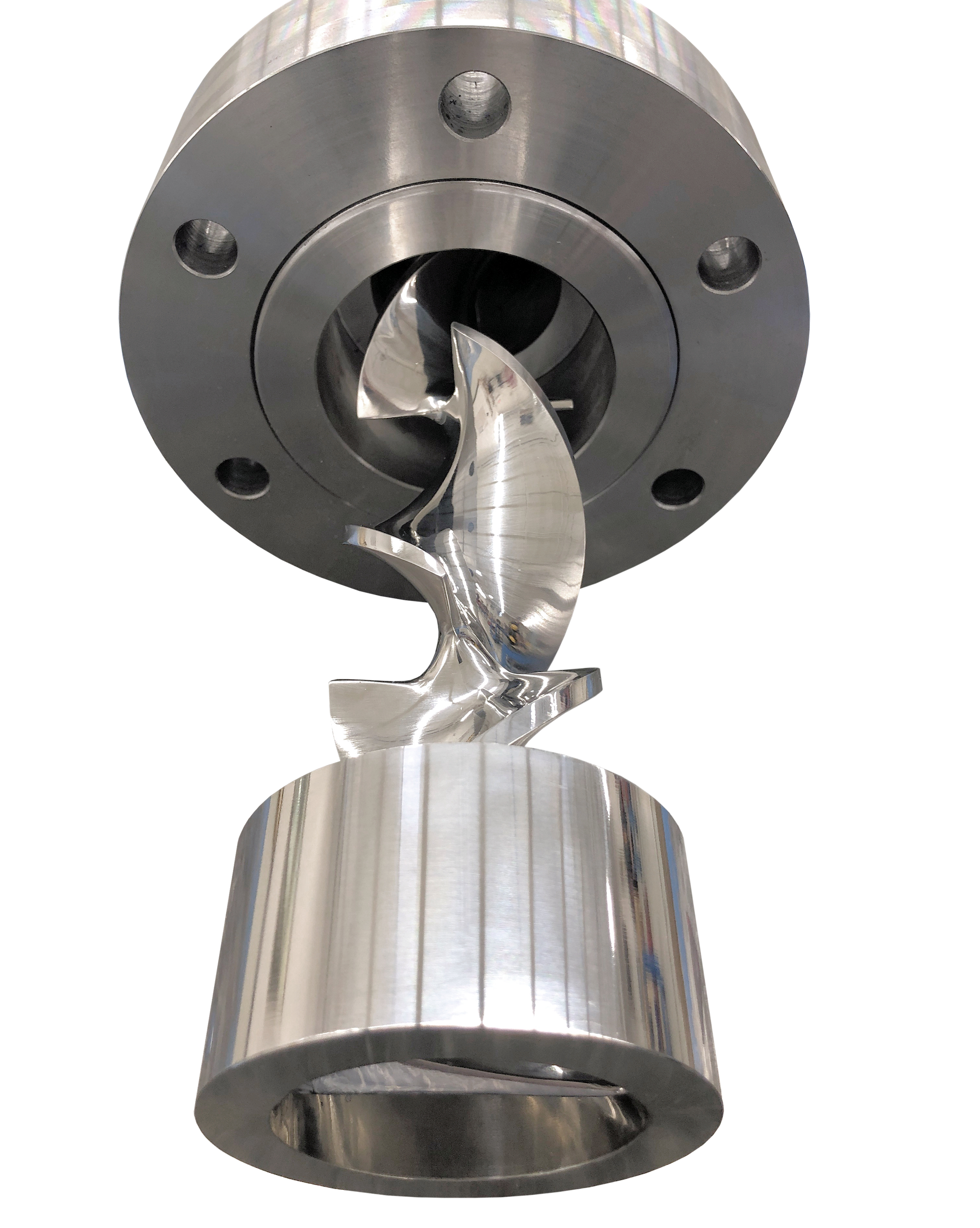

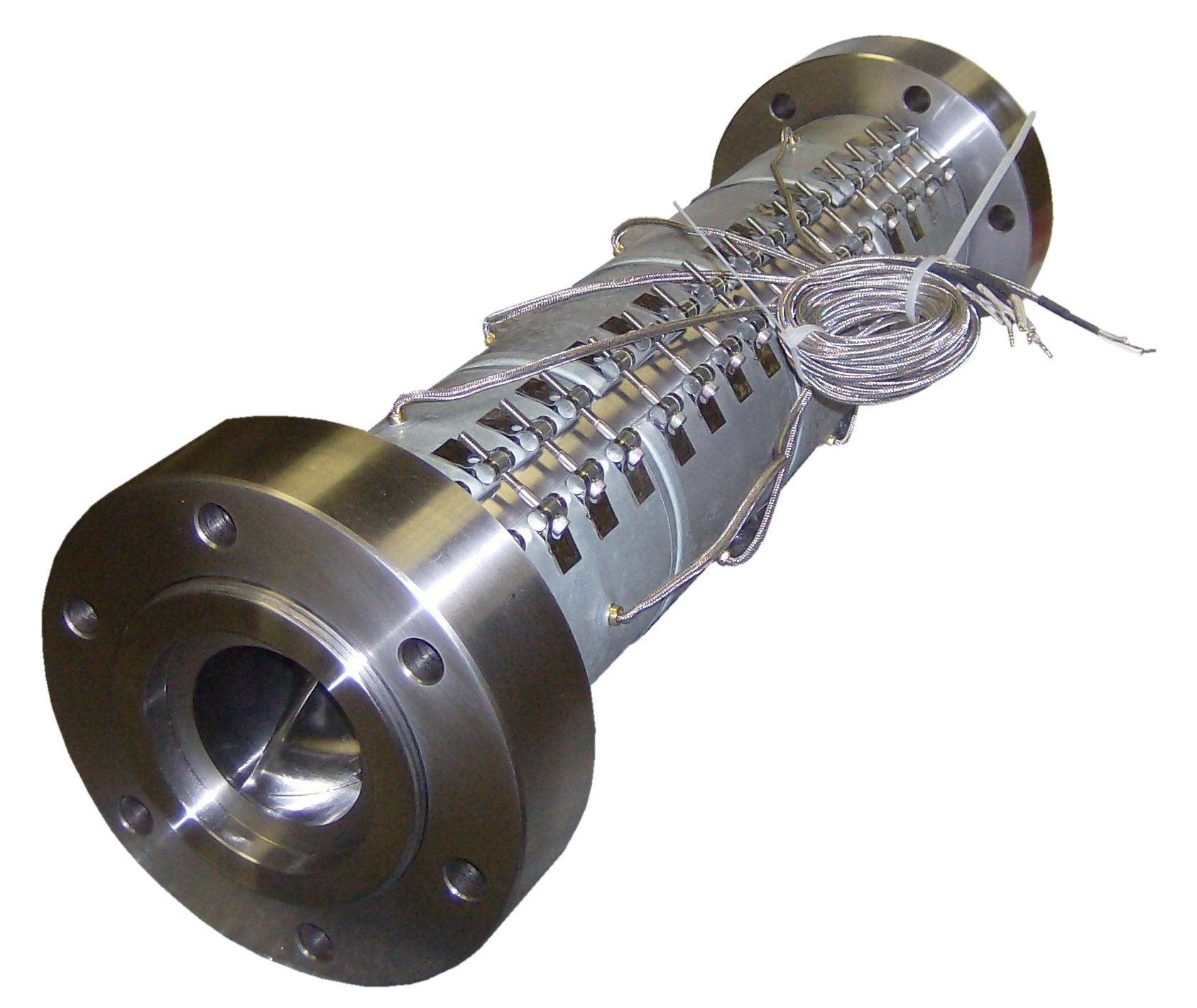

Uniflo Static Mixers (USM) provide continuous in-line mixing for polymers, colorants, adhesives, and other fluids. Highly polished, alternating 90° helical elements (alternating bow-tie twists) provide radial and axial blending over a short length to assure total mixing of compounded materials or to flatten melt temperature gradients. USM mixers are made with high-strength elements, have no moving parts, and produce an exceptionally low drag coefficient. The mixing element is easy to remove for fast material changeovers and convenient maintenance.

Material flow over each element in the Uniflo Static Mixer simultaneously splits, blends, and changes direction, ensuring a homogeneous output.

Each successive element splits the flow such that the number of splits squares the previous number. For example, the first element splits the flow in two. The second element splits this result into four, the next into eight.

A 6-element mixer splits the flow 2⁶ (64) times.
A 9-element mixer splits the flow 2⁹ (512) times.

Flow is non-linear. Constant directional change within the static mixer moves material at the center out to the wall and from the wall inward to the center.

Specifications

Element diameters	.75-inch to 4-inch (19 mm -100 mm)
Elements per mixer	6 or 9
Heating	Electric
Barrel construction	Alloy Steel

		Extruder Output
No. Elements	Diameter (inch)	Lb/hr	Kg/hr
6	1.00	50-800	25-365
6	1.25	100-1,750	45-800
6	1.50	200-2,500	90-1,135
6	2.00	500-4,000	230-1,815
6	2.50	600-6,500	270-3,000
6	3.00	1,000-10,000	455-4,550
6	4.00	1,800-18,000	800-8,000

		Extruder Output
No. Elements	Diameter (inch)	Lb/hr	Kg/hr
9	1.00	50-200	25-90
9	1.25	50-450	35-200
9	1.50	100-850	45-390
9	2.00	300-2,000	135-910
9	2.50	800-2,500	365-1,135
9	3.00	1,000-5,000	455-2,270
9	4.00	1,800-9,000	800-4,000

Features

Excellent mixing or blending
Eliminates in-process thermal gradients
Highly polished high-flow stainless-steel mixing elements
Removable mixing element for quick material change
Short residence time
No dead spaces for product to hang up or degrade
No moving parts
Easily adapted to most melt pipes with customizable inlet and outlet flanges
Removes memory from extrusion process for high viscosity materials

Options

Stainless-steel barrel and flanges
Chrome or nickel plating
External jacketing for fluid heat/cool
High temperature up to 850°F [454°C]

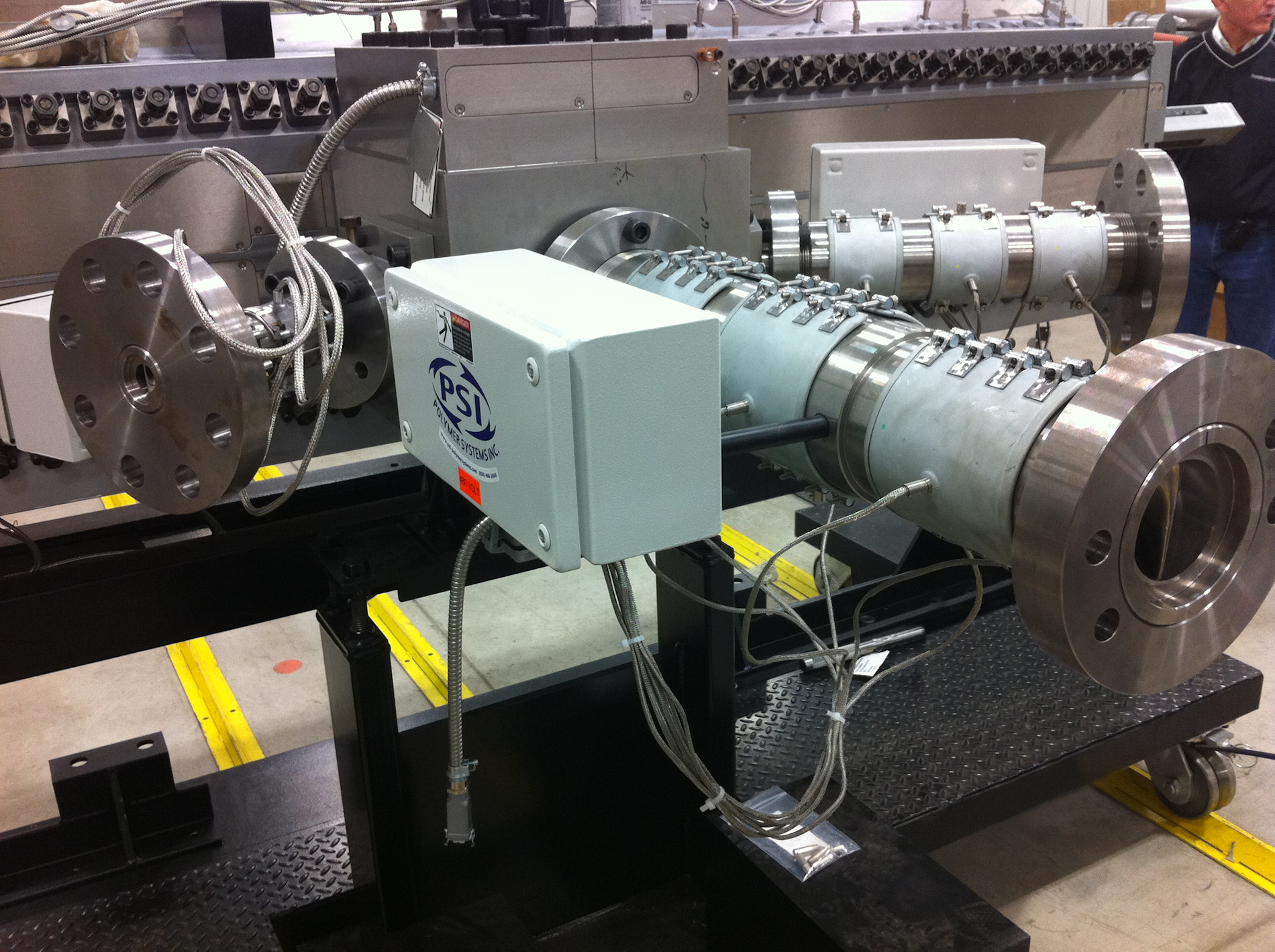

Housing-mounted junction box

Accessories

Adaptors
Heat control
Pressure instruments
